BLURRING THE BOUNDARIES

Quantum Cavity Stacking Doors

BLURRING THE BOUNDARIES

Contemporary living is all about embracing a more casual approach where family and friends drift effortlessly between the indoors and outdoors and spontaneous gatherings become regular events. And it’s all made possible by Trend’s Quantum Cavity Stacker Door.

Quantum Cavity Stacker architecture

Quantum Cavity Stacking Doors

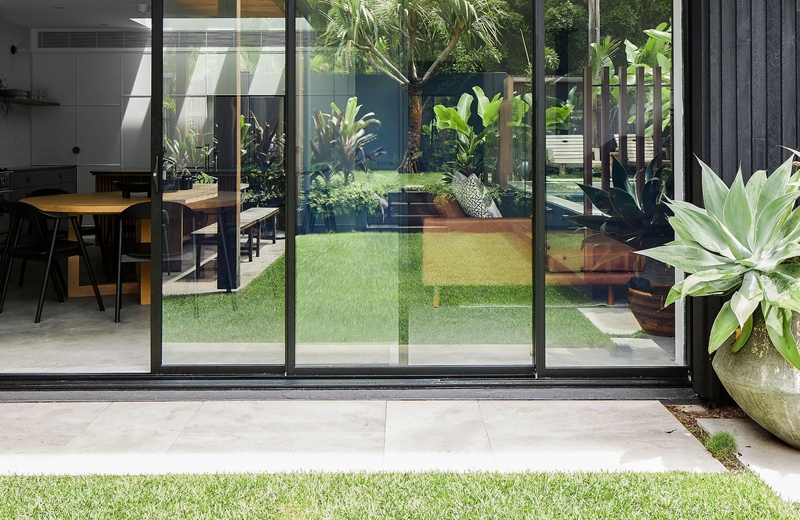

Glide Out Of Sight

Gliding smoothly out of sight, the Quantum Cavity Stacker creates a broad opening that’s perfect for taking advantage of Australia’s easy-going, outdoor lifestyle. When open the doors disappear into the wall achieving this uninterrupted connection to the outdoors. While these doors will usually be installed under alfresco areas, Trend has ensured the Cavity Stacker provides complete protection against the elements.
QUANTUM CAVITY STACKING DOORS

EXPLORE THE POSSIBILITIES

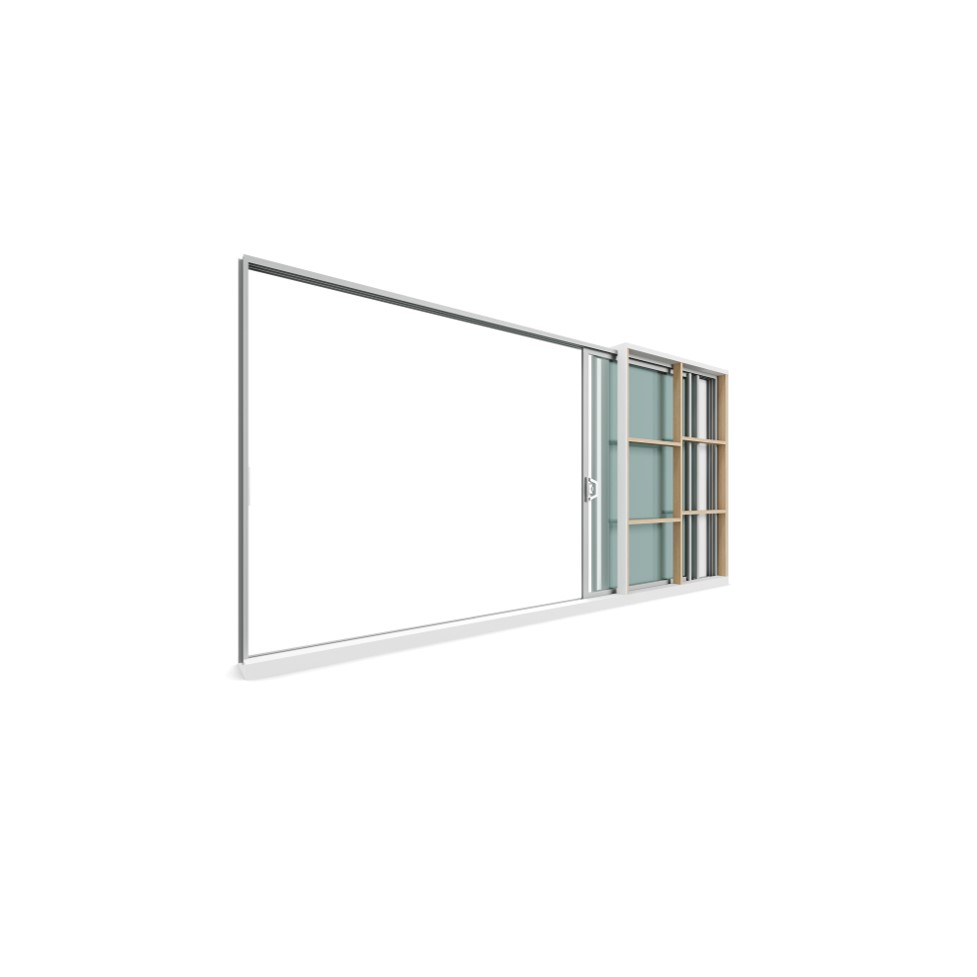

The Quantum cavity door offers flexibility in application with a range of configurations. In addition to 2, 3 and 4 panel cavity stacker doors, corner stacking options available in 4 and 6 panel.

FINISHES

With Trend's extensive palette of colours you’re sure to find exactly the right hue to express your individual vision.

Designer Range

Trend Metallic Charcoal
Basalt
Ironstone
Deep Ocean
Jasper
Hammersley Brown
Trend Silver Pearl
Shale Grey
White Birch
Paperbark

Standard Range

Pearl White
Ultra Black
Monument
Woodland Grey
Dune
Anodic Natural Matt
Surfmist
Anodic Off White
Primrose
Stone Beige

Textura Range

Textura Silver
Textura Surfmist
Textura White
Textura Black
Textura Monument
Textura Woodland Grey
Textura Deep Ocean
Textura Ironstone
Textura Jasper
Textura Dune
Textura Paperbark
Textura Primrose

HARDWARE

Finishing details can take any design to a whole new level and that’s especially true of door and window hardware.

Infinity slim handle - inside
Infinity D handle - inside
Dura handle - inside
Infinity and Dura handle - outside
Timbarra handle - inside
Timbarra handle - outside

GLASS OPTIONS

A range of glazing options are available to improve comfort, acoustics, security, and privacy.

Comfort

Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

Serenity

In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

Security

If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

Privacy

The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

Compare Our Sliding and Stacking Doors

Quantum Cavity Stacking Doors
Sill options
102mm x 40mm (Sliding)
162mm x 40mm (Stacking)
Sump sill optional
Maximum frame
3000mm high
Maximum sash
2945mm high x 1550mm wide
Glazing
4mm - 18mm
BAL rating
N/A
Seal type
Mohair and Aquamac
Screen options
• External aluminium
• Security
Quantum Sliding and Stacking Doors
Sill options
102mm x 40mm (Sliding)
162mm x 40mm (Stacking)
Sump sill optional
Maximum frame
3000mm high
Maximum sash
2945mm high x 1550mm wide
Glazing
4mm - 18mm
BAL rating
BAL40
Seal type
Mohair and Aquamac
Screen options
• External aluminium
• Security
Synergy Stacking Doors
Sill options
162mm x 40mm (Stacking)
101mm x 40mm (Sliding)
Sump sill optional
Maximum frame
2400mm high
Maximum sash
2345mm high x 1550mm wide
Glazing
4mm – 18mm
BAL rating
BAL40
Seal type
Mohair
Screen options
• External aluminium
• Security
Windsor Sliding and Stacking Doors
Sill options
150mm x 43mm (Sliding)
212mm x 43mm (Stacking)
Sub sill
Maximum frame
3000mm high
Maximum sash
3000mm high x 1800mm wide
Glazing
4mm - 24mm
BAL rating
BAL29 (Deemed To Satisfy)
Seal type
Mohair
Screen options
• External aluminium
• Security
Quantum Cavity Stacking Doors
Sill options
102mm x 40mm (Sliding)
162mm x 40mm (Stacking)
Sump sill optional
Maximum frame
3000mm high
Maximum sash
2945mm high x 1550mm wide
Glazing
4mm - 18mm
BAL rating
N/A
Seal type
Mohair and Aquamac
Screen options
• External aluminium
• Security
Quantum Sliding and Stacking Doors
Sill options
102mm x 40mm (Sliding)
162mm x 40mm (Stacking)
Sump sill optional
Maximum frame
3000mm high
Maximum sash
2945mm high x 1550mm wide
Glazing
4mm - 18mm
BAL rating
BAL40
Seal type
Mohair and Aquamac
Screen options
• External aluminium
• Security
Synergy Stacking Doors
Sill options
162mm x 40mm (Stacking)
101mm x 40mm (Sliding)
Sump sill optional
Maximum frame
2400mm high
Maximum sash
2345mm high x 1550mm wide
Glazing
4mm – 18mm
BAL rating
BAL40
Seal type
Mohair
Screen options
• External aluminium
• Security
Windsor Sliding and Stacking Doors
Sill options
150mm x 43mm (Sliding)
212mm x 43mm (Stacking)
Sub sill
Maximum frame
3000mm high
Maximum sash
3000mm high x 1800mm wide
Glazing
4mm - 24mm
BAL rating
BAL29 (Deemed To Satisfy)
Seal type
Mohair
Screen options
• External aluminium
• Security

Specifications

Sill options
102mm x 40mm (Sliding)
162mm x 40mm (Stacking)
Sump sill optional
Maximum frame
3000mm high
Maximum sash
2945mm high x 1550mm wide
Glazing
4mm - 18mm
BAL rating
N/A
Seal type
Mohair and Aquamac
Screen options
• External aluminium
• Security

Downloads

Quantum Cavity Stacker Flyer
Quantum Architectural Aluminium Series Brochure
Colour Range - Standard and Designer
Colour Range - Textura
Glazing Brochure

Professional resources

Aluminium Size Range Manual
Quantum Design Manual
Quantum CAD Drawings
Quantum Revit Files
