• Awning Windows
ThermaArc

Awning Windows

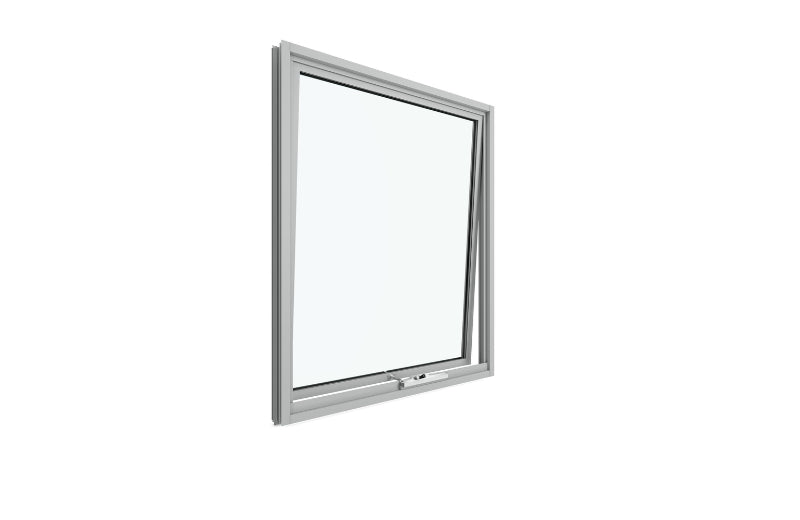

ThermaArc Awning Windows

ENJOY THE BEST OF BOTH WORLDS

You can have it all. Energy performance. Stunning style. ThermaArc awning windows offer the elevated energy efficiency of double glazing with the style, class and quality of a thermally broken aluminium frame. Live your dream, in comfort.

ThermaArc Awning Windows

Maximum visual impact

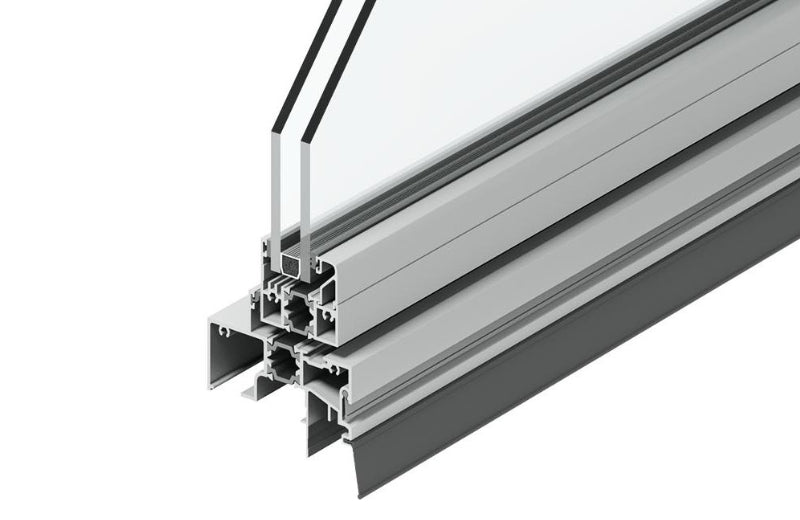

The ThermaArc awning window is the perfect combination of energy performance and style – and it is available in sizing that allows for maximum visual impact and design flexibility. The robust 88mm frame depth and 50mm sashes achieve larger expanses of glass, including 2318 high x 1122 wide lites.

ThermaArc Awning Window Spec Sheet

FINISHES

With Trend's extensive palette of colours you’re sure to find exactly the right hue to express your individual vision.
  • Monument
    • Finish: Matt
  • Surfmist
    • Finish: Matt
  • Pearl White
    • Finish: Gloss
    • Finish Group: Standard Range
    • Lead Time: Lead time may differ between states. Please contact your local Trend team to confirm.
  • Ultra Black
    • Finish: Matt
    • Finish Group: Standard Range
    • Lead Time: Lead time may differ between states. Please contact your local Trend team to confirm.

HARDWARE

Finishing details can take any design to a whole new level and that’s especially true of door and window hardware.

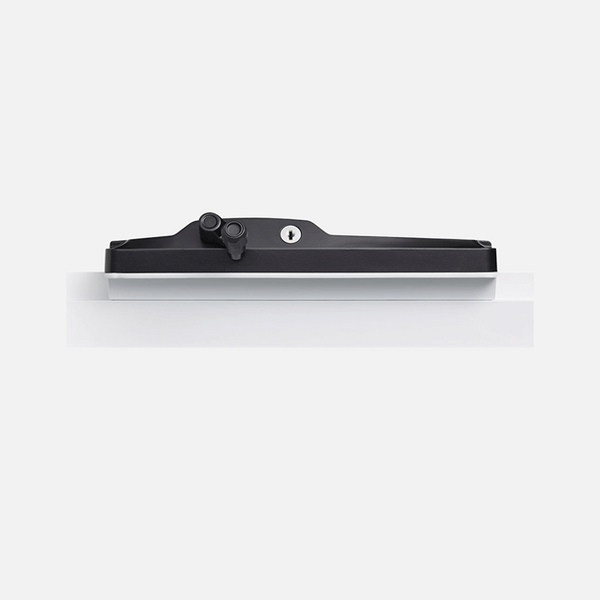

  • Chain Winder - ThermaArc Black
    • Finish: Black (pictured)
    • Other finishes available: Black, Pearl White, Monument, Silver

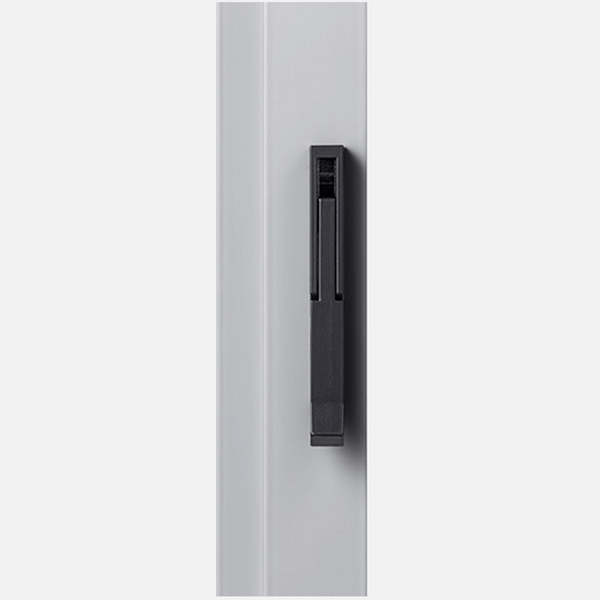

  • Sash Fastener Silver Black
    • Finish: Black (pictured)
    • Other finishes available: Black, Pearl White, Surfmist, Monument

GLASS OPTIONS

A range of glazing options are available to improve comfort, acoustics, security, and privacy.
  • Security

    Security

    If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

    If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

    Features:Safety And Security

    Glass Options:Double Glazing, Single Glazing

  • Serenity

    Serenity

    In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

    In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

    Features:Acoustics

    Glass Options:Double Glazing, Single Glazing

  • Comfort

    Comfort

    Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

    Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

    Features:Energy Efficiency

    Glass Options:Double Glazing, Single Glazing

  • Privacy

    Privacy

    The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

    The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

    Features:Privacy

    Glass Options:Double Glazing, Single Glazing

Specifications

Sill options
N/A
Maximum frame
6000mm high
Maximum sash
618mm high x 2632mm wide 2318mm high x 1122mm wide
Glazing
20mm – 24mm Double glazing only
BAL rating
BAL40
Seal type
PVC bulb seal
Screen options
Flyscreen and barrier screens
Double glazed Uw range
2.1 – 3.0
Double glazed SHGC range
0.17 – 0.51
Fenestration
Awning Window

Downloads

ThermaArc Awning Window Spec Sheet
ThermaRes and ThermaArc Size Charts
