Awning Windows

Botanica Awning Windows

Functional Design

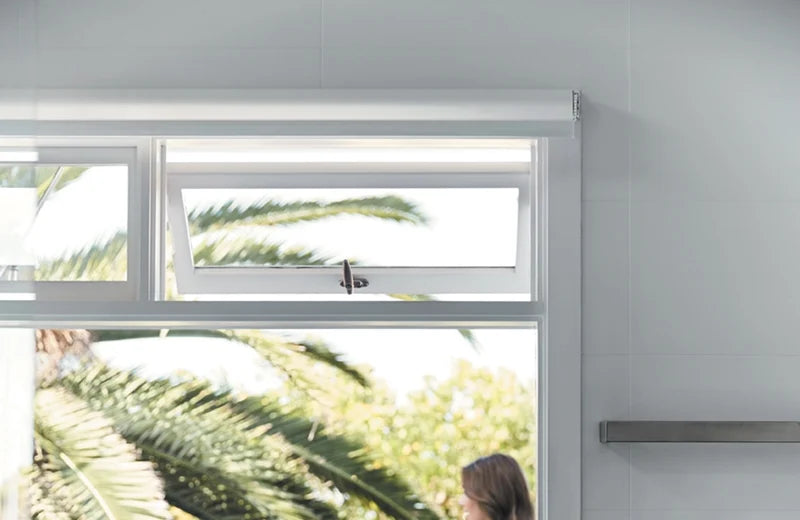

A brilliantly functional design, Botanica timber awning windows are hinged at the top and open outward from the bottom. They’re an ideal choice to use on their own or can also complement fixed windows. The slanted opening allows for ventilation, even in wet weather. The winder can hold the winder open up to 300mm. 100mm winder option is available where openings need to be restricted to prevent falls.

Botanica Awning Windows

EXPLORE THE POSSIBILITIES

Botanica awning windows are available in a variety of configurations, offering design flexibility to achieve any vision.

FINISHES

With Trend's extensive palette of colours you’re sure to find exactly the right hue to express your individual vision.
  • Western Red Cedar

    Western Red Cedar is renowned for its natural beauty and colour variation.
    It works well indoors and outdoors, and achieves any look from natural and rustic to clean and contemporary. It also resists warping, cupping, twisting, rot, and termites. To enhance cedar's grain and colour it is most commonly stained, however it is possible to achieve a painted finish.

  • Meranti

    Meranti is of medium hardness, is easily handled and machined, and is very reasonably priced. It has a uniformly straight grain with few variations and is resistant to warping, cupping and twisting. Meranti readily accepts both stain and paint finishes. It's widely used for decorative applications, including windows, doors, moulding and skirtings.

HARDWARE

Finishing details can take any design to a whole new level and that’s especially true of door and window hardware.
  • Chain winder

    Cedar is supplied with satin chrome hardware as standard. The satin chrome finish may vary across hardware items.

    • Finish: Satin Chrome (pictured)
    • Other finishes available: Black, Pearl White, Silver, Monument

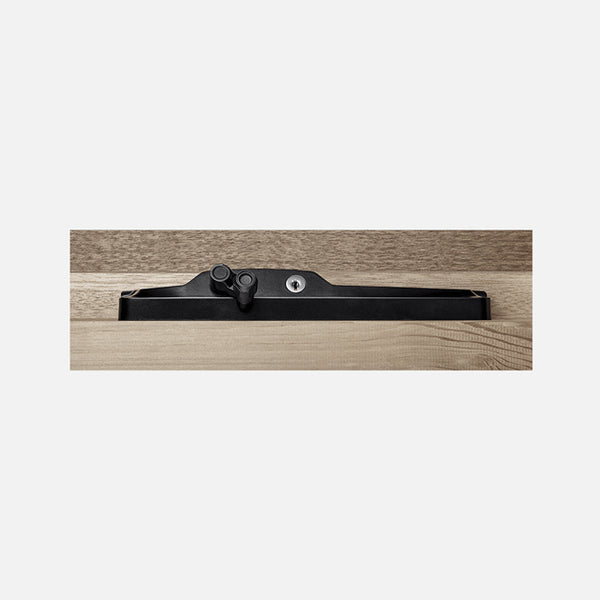

  • Chain Winder Black

    Meranti is supplied with black hardware as standard. The black finish may vary across hardware items.

    • Finish: Black (pictured)
    • Other finishes available: Satin Chrome, Pearl White, Silver, Monument

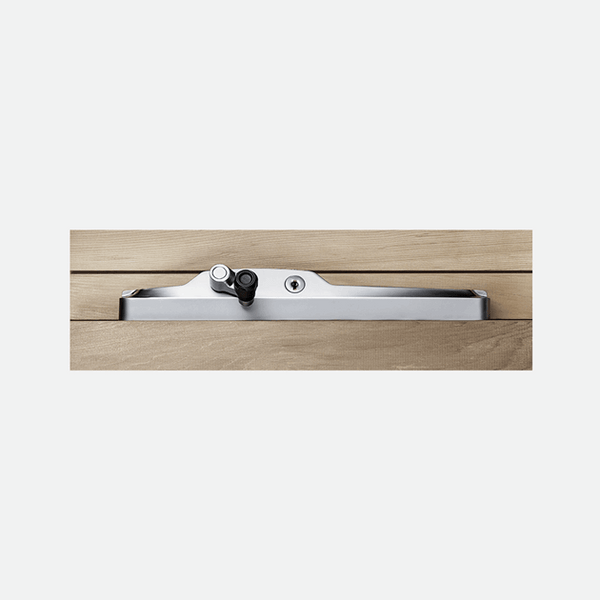

  • Chain winder silver
    • Finish: Silver (pictured)
    • Other finishes available: Satin Chrome, Black, Pearl White, Monument

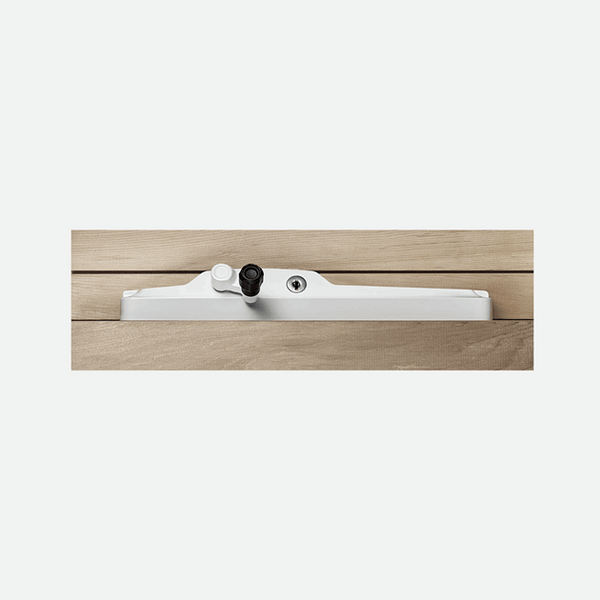

  • Chain winder pearl white
    • Finish: Pearl White (pictured)
    • Other finishes available: Satin Chrome, Black, Silver, Monument
  • Sash lock

    Cedar is supplied with satin chrome hardware as standard. The satin chrome finish may vary across hardware items.

    • Finish: Satin Chrome (pictured)
    • Other finishes available: Black
  • Sash lock Black

    Meranti is supplied with black hardware as standard. The black finish may vary across hardware items.

    • Finish: Black (pictured)
    • Other finishes available: Satin Chrome
  • Sash fastener

    Cedar is supplied with satin chrome hardware as standard. The satin chrome finish may vary across hardware items.

    • Finish: Satin Chrome (pictured)
    • Other finishes available: Black
  • Sash fastener black hardware

    Meranti is supplied with black hardware as standard. The black finish may vary across hardware items.

    • Finish: Black (pictured)
    • Other finishes available: Satin Chrome

GLASS OPTIONS

A range of glazing options are available to improve comfort, acoustics, security, and privacy.
  • Security

    Security

    If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

    If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

    Features:Safety And Security

    Glass Options:Double Glazing, Single Glazing

  • Serenity

    Serenity

    In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

    In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

    Features:Acoustics

    Glass Options:Double Glazing, Single Glazing

  • Comfort

    Comfort

    Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

    Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

    Features:Energy Efficiency

    Glass Options:Double Glazing, Single Glazing

  • Privacy

    Privacy

    The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

    The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

    Features:Privacy

    Glass Options:Double Glazing, Single Glazing

Specifications

Sill options
138mm or 165mm Cedar, Meranti or Hardwood
Maximum frame
2700mm high
Maximum sash
2400mm high x 800mm wide or 800mm high x 2400mm wide Max weight 40kg
Glazing
4mm – 20mm
BAL rating
BAL40
Seal type
Compression
Screen options
• Internal fixed timber or aluminium • Security
