• Double Hung Windows
Botanica

Double Hung Windows

Botanica Double Hung Windows

Timeless Design

Whether you’re embarking on a renovation or restoration, the eternally popular double hung window is perfect for recreating traditional Australian architectural styles.

The sashes in a traditional double hung window are operated manually either up or down on concealed springs.

BOTANICA DOUBLE HUNG WINDOWS

EXPLORE THE POSSIBILITIES

Botanica double hung windows are available in a variety of configurations, offering design flexibility to achieve any vision.

FINISHES

With Trend's extensive palette of colours you’re sure to find exactly the right hue to express your individual vision.
  • Western Red Cedar

    Western Red Cedar is renowned for its natural beauty and colour variation.
    It works well indoors and outdoors, and achieves any look from natural and rustic to clean and contemporary. It also resists warping, cupping, twisting, rot, and termites. To enhance cedar's grain and colour it is most commonly stained, however it is possible to achieve a painted finish.

  • Meranti

    Meranti is of medium hardness, is easily handled and machined, and is very reasonably priced. It has a uniformly straight grain with few variations and is resistant to warping, cupping and twisting. Meranti readily accepts both stain and paint finishes. It's widely used for decorative applications, including windows, doors, moulding and skirtings.

HARDWARE

Finishing details can take any design to a whole new level and that’s especially true of door and window hardware.

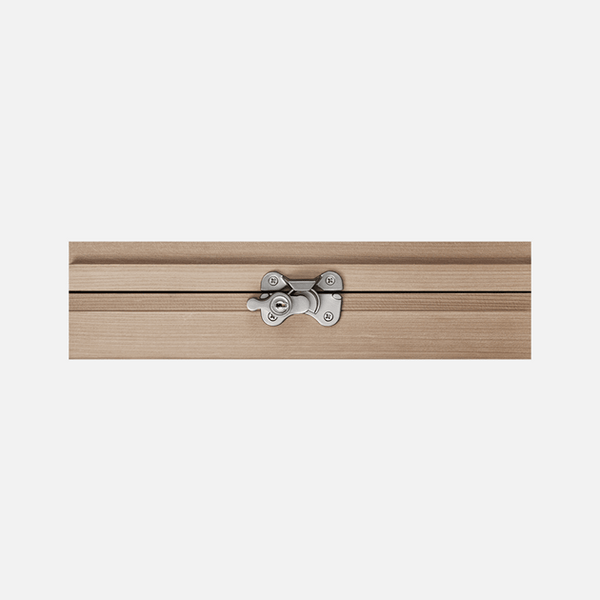

  • Double hung lock - Traditional

    Cedar is supplied with satin chrome hardware as standard. The satin chrome finish may vary across hardware items.

    • Finish: Satin Chrome (pictured)
    • Other finishes available: Black

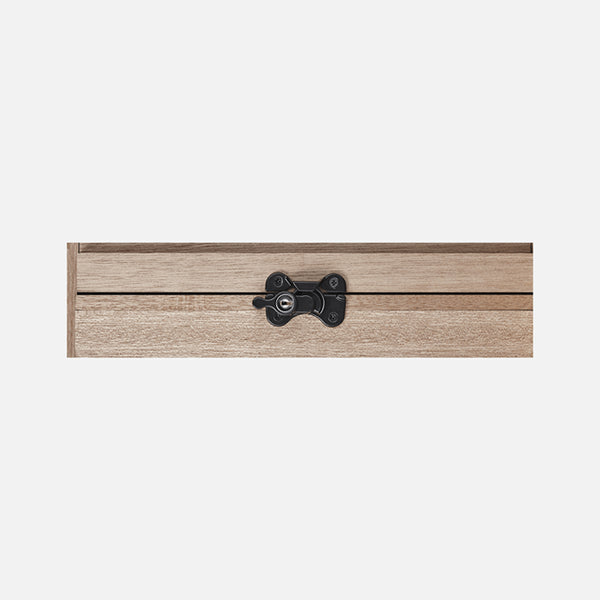

  • Double hung lock - Traditional Black

    Meranti is supplied with black hardware as standard. The black finish may vary across hardware items.Β

    • Finish: Black (pictured)
    • Other finishes available: Satin Chrome

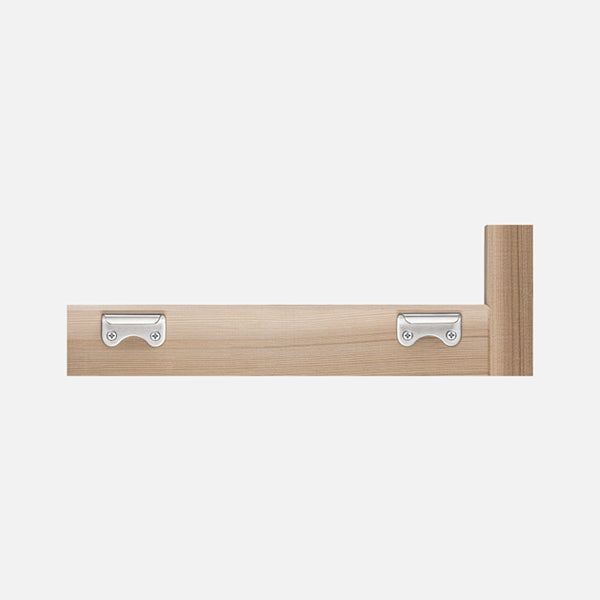

  • Sash lifts Satin Chrome
    • Finish: Satin Chrome (pictured)
    • Other finishes available: Black

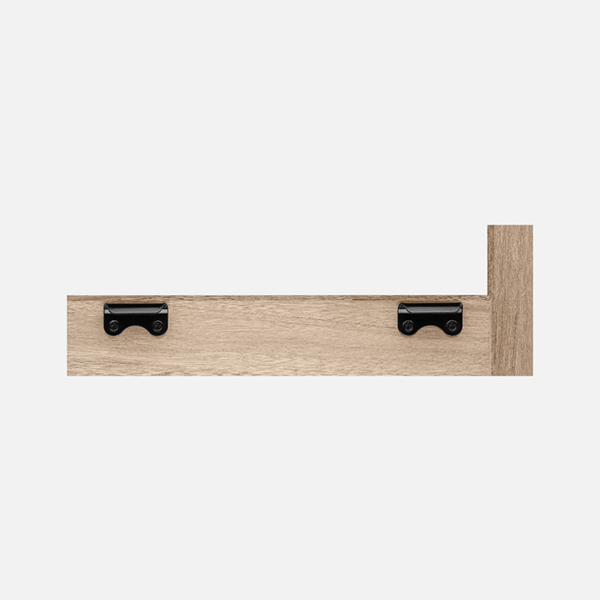

  • Sash lifts

    Meranti is supplied with black hardware as standard. The black finish may vary across hardware items.Β

    • Finish: Black (pictured)
    • Other finishes available: Satin Chrome

Specifications

Sill options
138mm or 165mm Cedar, Meranti or Hardwood
Maximum frame
2400mm high
Maximum sash
1210mm high x 1210mm wide Max weight 20kgs
Glazing
4mm – 20mm
BAL rating
Deemed to satisfy BAL19 (Cedar and Meranti 400mm from sill)
Seal type
Finseal
Screen options
External fixed timber or aluminium β€’ Security
Fenestration
Double Hung Window

Downloads

Botanica Timber Series Brochure
Glazing Brochure

Professional Resources

Botanica Timber Series Size Range Manual
Botanica CAD Drawings
Botanica Revit Files
