Botanica Timber Bi-Fold Doors

Bring the Outside Inside

If you’re looking to bring the outside inside, our timber bi-fold doors are your answer.
When closed, they’re a stately wall of light. Once opened, however, they fold virtually out of sight to create an expansive opening that extends your living space and joins living rooms with verandas and garden areas.

BOTANICA BIFOLD DOORS

EXPLORE THE POSSIBILITIES

Botanica bi-fold doors are available in a variety of configurations, offering design flexibility to achieve any vision.

FINISHES

With Trend's extensive palette of colours you’re sure to find exactly the right hue to express your individual vision.
  • Western Red Cedar

    Western Red Cedar is renowned for its natural beauty and colour variation.
    It works well indoors and outdoors, and achieves any look from natural and rustic to clean and contemporary. It also resists warping, cupping, twisting, rot, and termites. To enhance cedar's grain and colour it is most commonly stained, however it is possible to achieve a painted finish.

  • Meranti

    Meranti is of medium hardness, is easily handled and machined, and is very reasonably priced. It has a uniformly straight grain with few variations and is resistant to warping, cupping and twisting. Meranti readily accepts both stain and paint finishes. It's widely used for decorative applications, including windows, doors, moulding and skirtings.

HARDWARE

Finishing details can take any design to a whole new level and that’s especially true of door and window hardware.

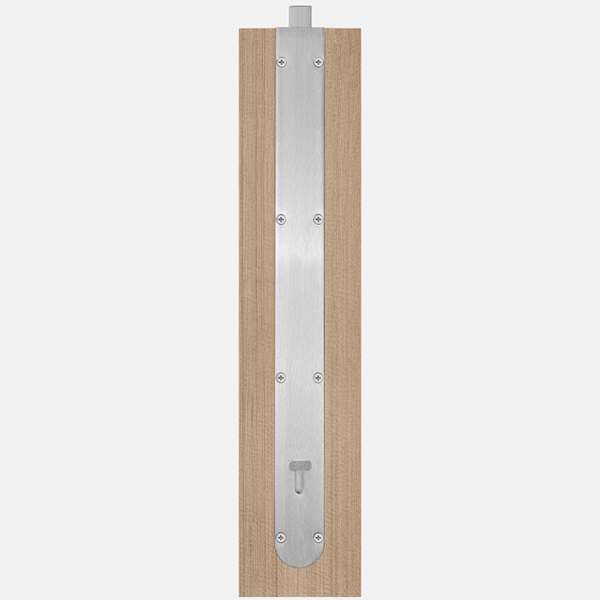

  • Flush-mounted drop bolt - top satin chrome
    • Finish: : Satin Chrome
  • Flush-mounted drop bolt - bottom - keyed
    • Finish: : Satin Chrome

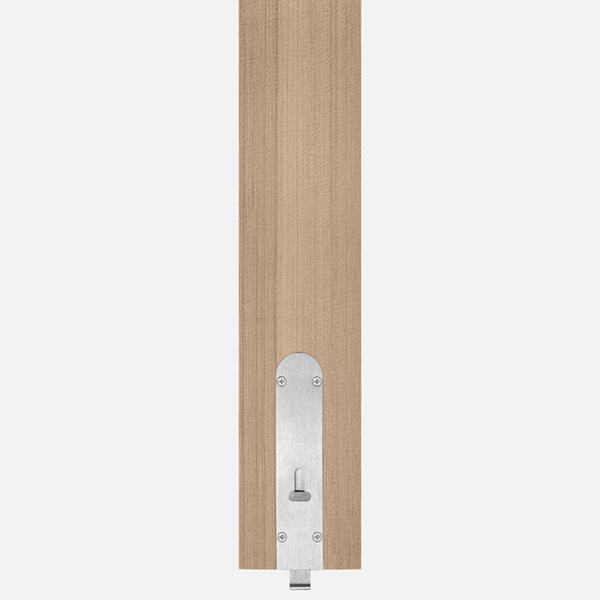

  • Flush-mounted drop bolt - bottom - non-keyed
    • Finish: : Satin Chrome
  • Palladium handle - inside
    • Finish: Satin Chrome (pictured)
    • Other finishes available: Black

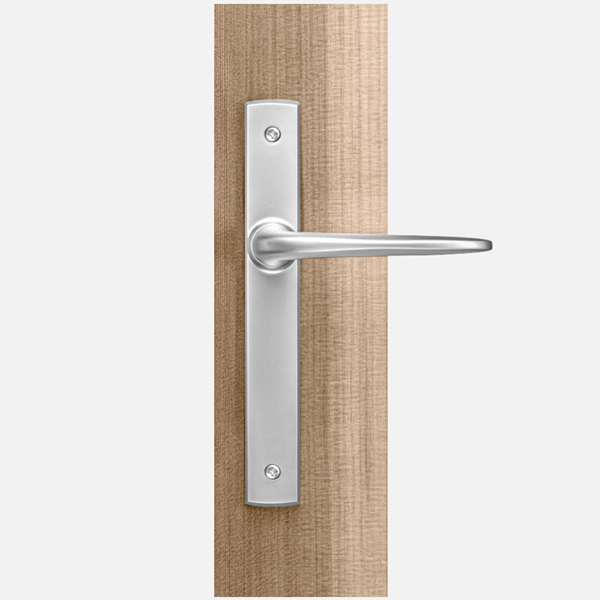

  • Palladium handle - outside

    Cedar is supplied with satin chrome hardware as standard. The satin chrome finish may vary across hardware items.

    • Finish: Satin Chrome (pictured)
    • Other finishes available: Black

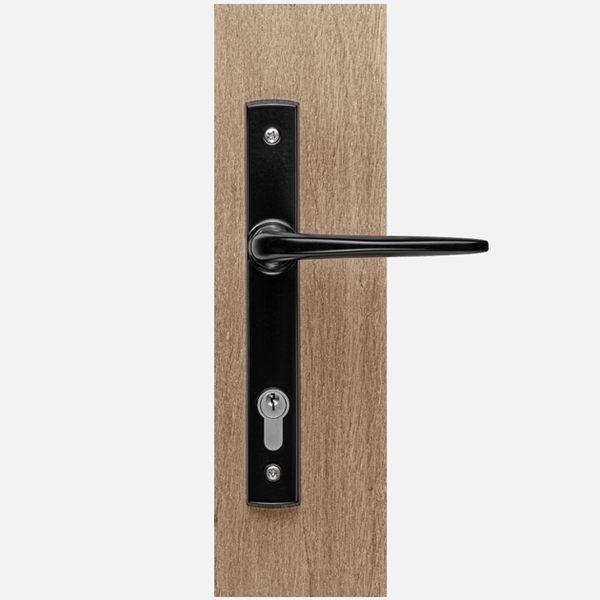

  • Palladium Handle - inside Black

    Meranti is supplied with black hardware as standard. The black finish may vary across hardware items.

    • Finish: Black (pictured)
    • Other finishes available: Satin Chrome

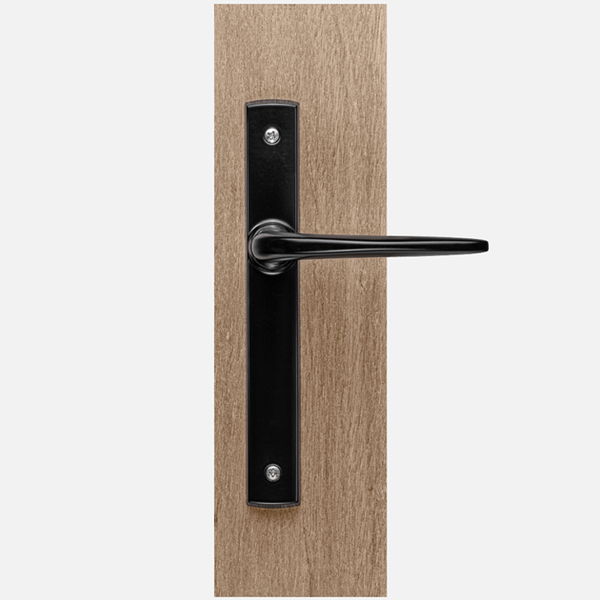

  • Palladium handle - Outside Black
    • Finish: : Black (pictured)
    • Other finishes available: : Satin Chrome

GLASS OPTIONS

A range of glazing options are available to improve comfort, acoustics, security, and privacy.
  • Security

    Security

    If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

    If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

    Features:Safety And Security

    Glass Options:Double Glazing, Single Glazing

  • Serenity

    Serenity

    In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

    In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

    Features:Acoustics

    Glass Options:Double Glazing, Single Glazing

  • Comfort

    Comfort

    Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

    Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

    Features:Energy Efficiency

    Glass Options:Double Glazing, Single Glazing

  • Privacy

    Privacy

    The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

    The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

    Features:Privacy

    Glass Options:Double Glazing, Single Glazing

Specifications

Sill options
138mm U channel
Maximum frame
2700mm high 2400mm (corner bi-fold)
Maximum sash
2700mm high x 820mm wide or 2400mm high x 920mm wide
Glazing
4mm – 20mm
BAL rating
Meranti BAL19 (Open out with sill only) Cedar BAL40 (Open out with sill only)
Seal type
Compression
Screen options
N/A

Downloads

Botanica Timber Series Brochure
Glazing Brochure

Professional Resources

Botanica Timber Series Size Range Manual
Botanica CAD Drawings
Botanica Revit Files
