• Botanica Bi-Fold Windows
Botanica

Botanica Bi-Fold Windows

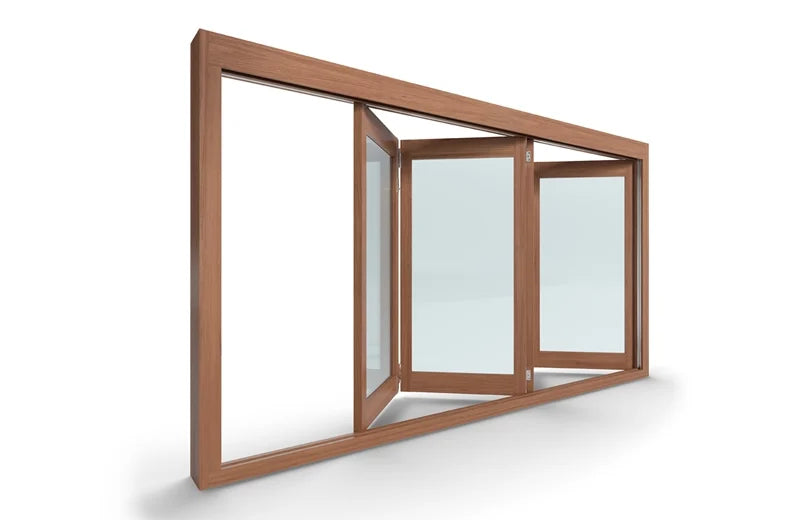

Botanica TIMBER Bi-Fold Windows

An Entertainers Dream

Bi-fold windows are the most practical solution to connect your kitchen with your outdoor space. A keen entertainer’s must-have, in servery mode they create a functional opening for passing food and drinks to your guests. And by extending your countertop past the window line, it allows you to create a bar-like set up with stools below. Although bi-fold windows are most commonly seen in the kitchen, they also make a beautiful alternative to a fixed window in a breakfast bar or window seat.

Botanica TIMBER Bi-Fold Windows

Bring the Outside Inside

Bi-fold windows allow an abundance of natural light and fresh air to drift through your home. Window opens to the extremities of the frame and by bringing the outside in, they maximise your living and entertaining areas.

FINISHES

With Trend's extensive palette of colours you’re sure to find exactly the right hue to express your individual vision.
  • Western Red Cedar

    Western Red Cedar is renowned for its natural beauty and colour variation.
    It works well indoors and outdoors, and achieves any look from natural and rustic to clean and contemporary. It also resists warping, cupping, twisting, rot, and termites. To enhance cedar's grain and colour it is most commonly stained, however it is possible to achieve a painted finish.

  • Meranti

    Meranti is of medium hardness, is easily handled and machined, and is very reasonably priced. It has a uniformly straight grain with few variations and is resistant to warping, cupping and twisting. Meranti readily accepts both stain and paint finishes. It's widely used for decorative applications, including windows, doors, moulding and skirtings.

HARDWARE

Finishing details can take any design to a whole new level and that’s especially true of door and window hardware.

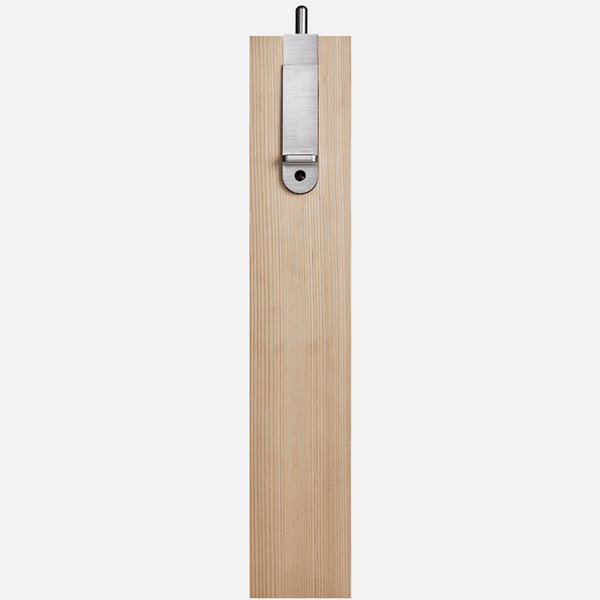

  • Flush-mounted drop bolt - top

    Cedar is supplied with satin chrome hardware as standard. The satin chrome finish may vary across hardware items.

    • Finish: Satin Chrome (pictured)
    • Other finishes available: Black

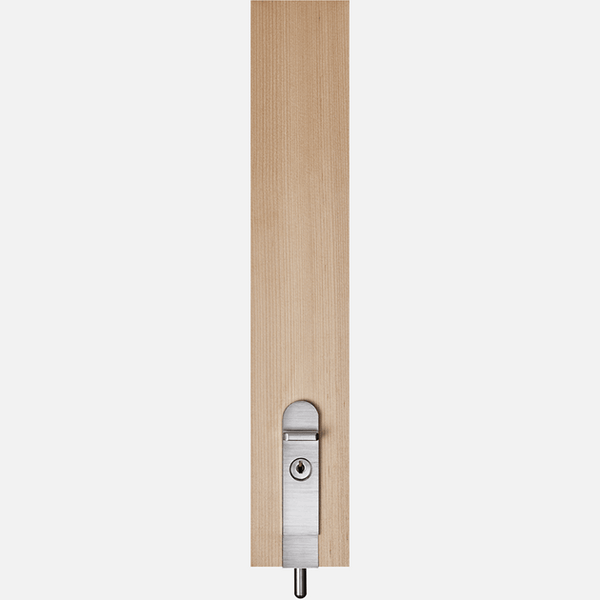

  • Flush-mounted drop bolt - bottom

GLASS OPTIONS

A range of glazing options are available to improve comfort, acoustics, security, and privacy.
  • Security

    Security

    If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

    If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

    Features:Safety And Security

    Glass Options:Double Glazing, Single Glazing

  • Serenity

    Serenity

    In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

    In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

    Features:Acoustics

    Glass Options:Double Glazing, Single Glazing

  • Comfort

    Comfort

    Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

    Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

    Features: Energy Efficiency

    Glass Options: Double Glazing, Single Glazing

  • Privacy

    Privacy

    The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

    The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

    Features:Privacy

    Glass Options:Double Glazing, Single Glazing

Specifications

Sill options
138mm U channel
Maximum frame
1600mm high 1540mm high x 2400mm wide (with Screens)
Maximum sash
1500mm high x 800mm wide
Glazing
4mm – 20mm
BAL rating
N/A
Seal type
Compression
Screen options
• Internal – roll down (Not available for corner configuration)
Fenestration
Bi-Fold Window

Downloads

Botanica Timber Series Brochure
Glazing Brochure

Professional Resources

Botanica Timber Series Size Range Manual
Botanica CAD Drawings
Botanica Revit Files
