Quantum

Bi-Fold Doors

Quantum

Bi-Fold Doors

Bi-Fold Doors


An Entertainer's Dream

Quantum Bi-Fold Doors

An Entertainer's Dream

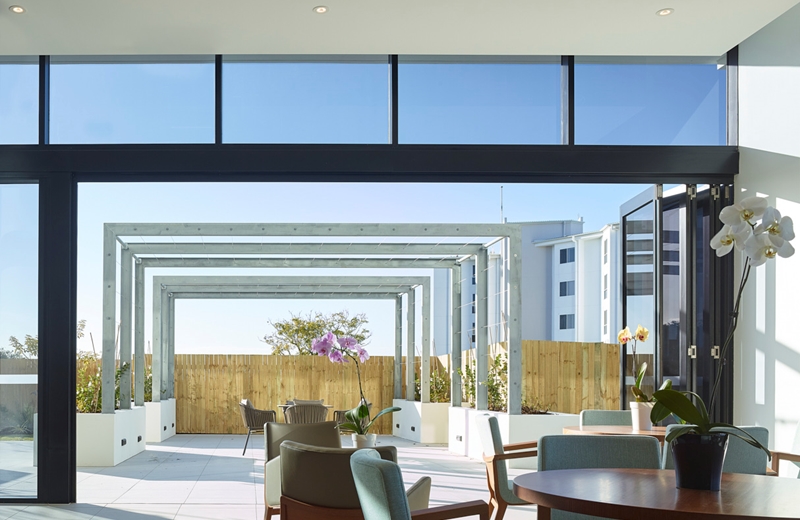

If you’re looking to bring the outside inside, our bi-fold doors are your answer. When closed, they’re a stately wall of light. Once opened, however, they fold virtually out of sight to create an expansive opening that extends your living space and joins living rooms with verandas and garden areas.

FINISHES

With Trend's extensive palette of colours you’re sure to find exactly the right hue to express your individual vision.

Designer Range

Trend Metallic Charcoal
Basalt
Ironstone
Deep Ocean
Jasper
Hammersley Brown
Trend Silver Pearl
Shale Grey
White Birch
Paperbark

Standard Range

Pearl White
Ultra Black
Monument
Woodland Grey
Dune
Anodic Natural Matt
Surfmist
Anodic Off White
Primrose
Stone Beige

Textura Range

Textura Silver
Textura Surfmist
Textura White
Textura Black
Textura Monument
Textura Woodland Grey
Textura Deep Ocean
Textura Ironstone
Textura Jasper
Textura Dune
Textura Paperbark
Textura Primrose

HARDWARE

Finishing details can take any design to a whole new level and that’s especially true of door and window hardware.

Infinity bi-fold handle
Infinity hinged door handle - inside
Infinity hinged door handle - outside
Flush bolt

GLASS OPTIONS

A range of glazing options are available to improve comfort, acoustics, security, and privacy.

Comfort

Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

Serenity

In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

Security

If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

Privacy

The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

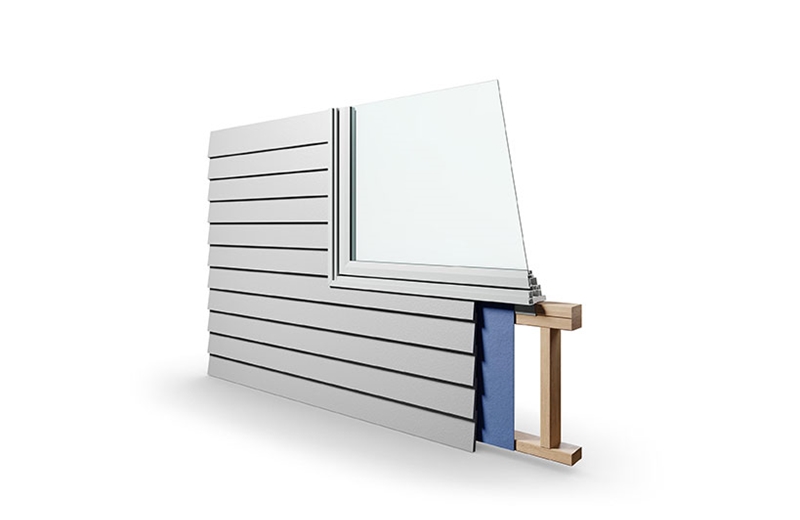

Integrated Flashing

Integrated Flashing

Trend's new integrated flashing creates a weatherproof seal around your window and door frame, protecting the internal building fabric of the home from rainwater and moisture damage.

  • Factory fitted, so it surrounds the entire window, including head, jambs and sill, as well as the head and jambs of doors.
  • Helps protect your home against the costly impact of moisture and water damage.
  • Reduces air infiltration and draughts by providing a seal between the window or door and the stud opening.

Specifications

Sill options
102mm x 49mm
Sump sill optional
Maximum frame
2400mm high (Standard)
3000mm high (Heavy duty)
Maximum sash
2370mm high x 900mm wide (Standard)
2320mm high x 1200mm wide (Heavy duty)

or
2950mm high x 1070mm wide (Heavy duty)
Glazing
4mm - 18mm (Standard)
4mm - 24mm (Heavy duty)
BAL rating
BAL40
Seal type
Mohair and Aquamac
Screen options
Screen by others

Downloads

quantum-architectural-aluminium-series-brochure_2024.pdf
Colour Range - Standard and Designer Brochure_2024.pdf
Colour Range - Textura_2024.pdf
Glazing Brochure_2024.pdf

Professional resources

Quantum Design Manual
Quantum CAD Drawings
Quantum Revit Files
