• Sliding and Stacking Doors
ThermaRes

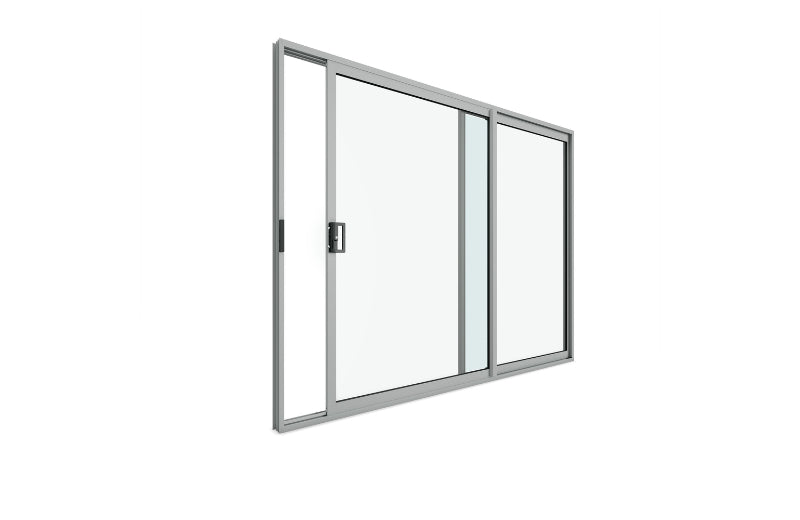

Sliding and Stacking Doors

ThermaRes Sliding and Stacking Doors

ENJOY THE BEST OF BOTH WORLDS

You can have it all. Energy performance. Stunning style. ThermaRes sliding and stacking doors offer the elevated energy efficiency of double glazing with the style, class and quality of a thermally broken aluminium frame. Live your dream, in comfort.

ThermaRes Sliding and Stacking Doors

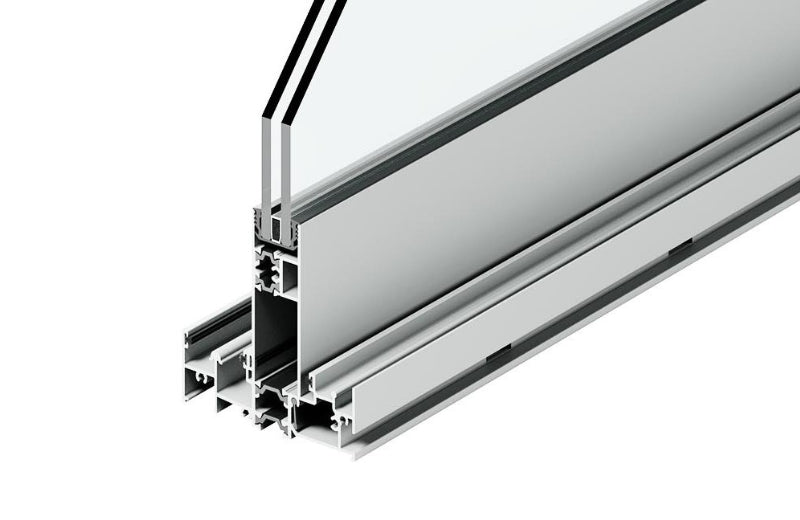

SLIM PROFILE FRAME

The ThermaRes thermally broken sliding and stacking door provides uncomplicated design flexibility, perfect for connecting your home’s interior with the outdoors. The slim profile frameΒ ensures energy performance, reaching a U-value as low as 1.7, whileΒ maximising natural light and views.

ThermaRes Sliding Stacking Door Spec Sheet

ThermaRes Sliding and Stacking Doors

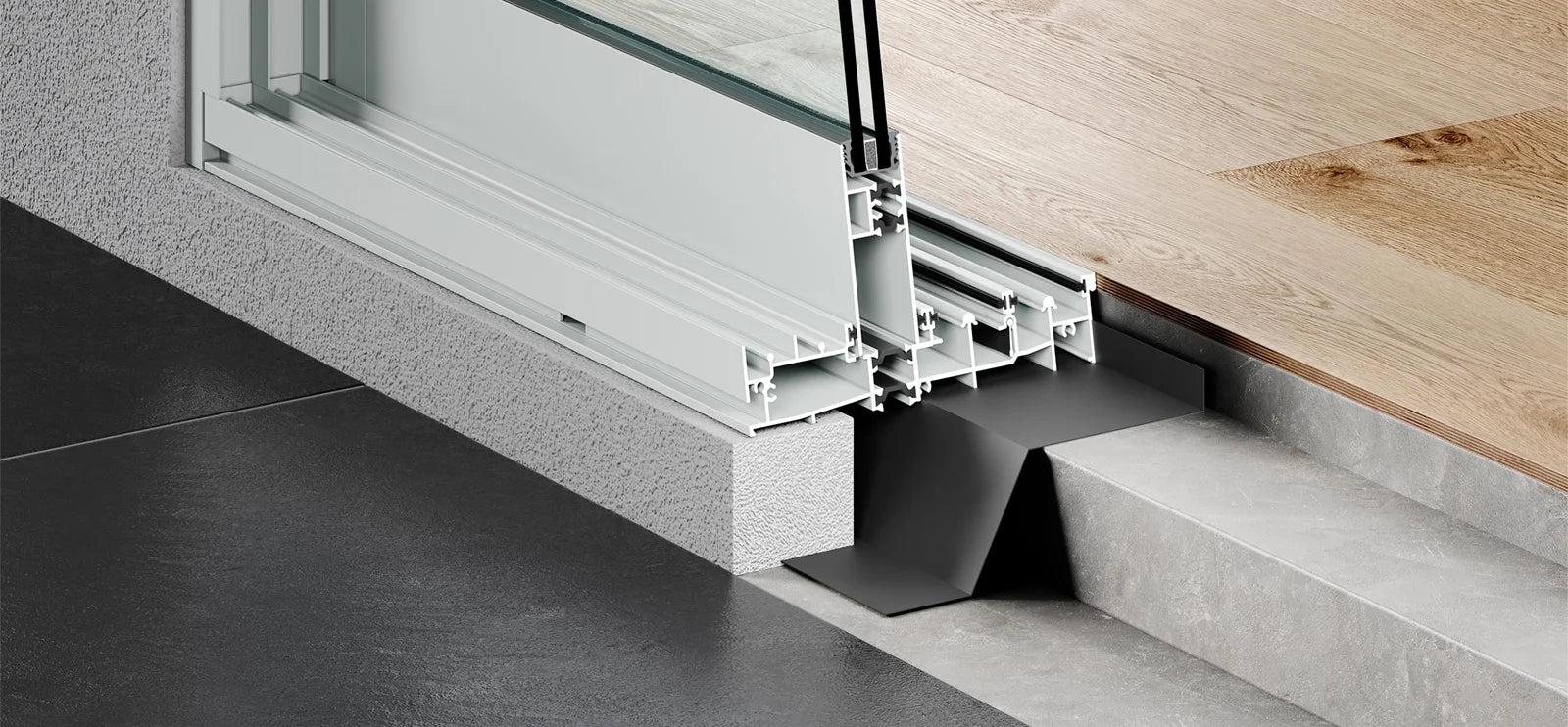

Low Profile Sills

The slim profile frame with a low profile 35mm sill height makes achieving flush thresholds easy.

FINISHES

With Trend's extensive palette of colours you’re sure to find exactly the right hue to express your individual vision.

Standard Range

  • Monument
    • Finish: Matt
  • Surfmist
    • Finish: Matt
  • Pearl White
    • Finish: Gloss
    • Finish Group: Standard Range
    • Lead Time: Lead time may differ between states. Please contact your local Trend team to confirm.
  • Ultra Black
    • Finish: Matt
    • Finish Group: Standard Range
    • Lead Time: Lead time may differ between states. Please contact your local Trend team to confirm.

HARDWARE

Finishing details can take any design to a whole new level and that’s especially true of door and window hardware.
  • D Handle - Inside
    • Finish: Black (pictured)
  • Slim Handle - Outside
    • Finish: Black (pictured)

GLASS OPTIONS

A range of glazing options are available to improve comfort, acoustics, security, and privacy.
  • Security

    Security

    If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

    If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

    Features:Safety And Security

    Glass Options:Double Glazing, Single Glazing

  • Serenity

    Serenity

    In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

    In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

    Features:Acoustics

    Glass Options:Double Glazing, Single Glazing

  • Comfort

    Comfort

    Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

    Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

    Features:Energy Efficiency

    Glass Options:Double Glazing, Single Glazing

  • Privacy

    Privacy

    The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

    The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

    Features:Privacy

    Glass Options:Double Glazing, Single Glazing

Specifications

Sill options
106mm x 35mm (Sliding) 172mm x 35mm (Stacking) Accessible sill as standard
Maximum frame
2600mm high
Maximum sash
2545mm high x 1550mm wide Max weight 200kgs
Glazing
20mm
BAL rating
BAL40
Seal type
Mohair with a fin
Screen options
Flyscreen and barrier screens
Double glazed Uw range
1.7 - 2.8
Double glazed SHGC range
0.20 – 0.64

Downloads

ThermaRes Sliding Stacking Door Spec Sheet
ThermaRes and ThermaArc Size Charts
